Mentor MEMS Design Flow

Tanner MEMS design flow delivers 3D MEMS design and fabrication support in one unified environment, and makes it easy to integrate MEMS devices with analog/mixed-signal processing circuitry on the same IC. Foundry-proven, it enhances the manufacturability of MEMS devices via mechanical, thermal, acoustic, electrical, electrostatic, magnetic and fluid analyses.

• Create a MEMS 3D model from layout
• Highly programmable layout editor with MEMS-friendly capabilities, such as curved polygons
• Design rule checking for MEMS manufacturability
• System-level simulation of IC design and MEMS devices
• Complete layer & design geometry visualization
• Automatically generate behavioral models of your MEMS devices
• Import DXF with boundary reconstruction, export DXF
• Available for Windows or Linux

FEATURES

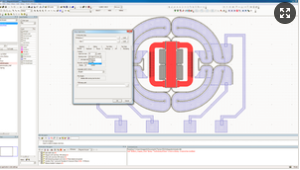

Advanced 3D analysis tools

• Supports mechanical, thermal, acoustic, electrical, electrostatic, magnetic and fluid analyses.

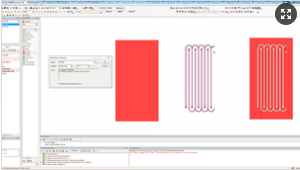

Complex polygon Boolean operations

• Reduces errors and increases productivity.

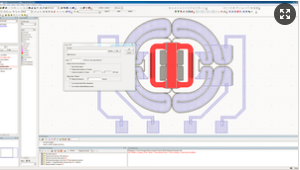

Automatic layout generation with parameterized cells

• Cells can be compiled for speed and/or distribution, programmed in C++ or Tcl. Supports external interfaces.

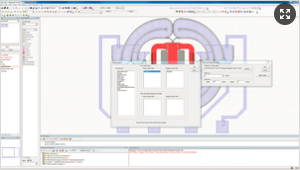

Advanced mask layout and verification flow

• Support for a wide variety of MEMS foundry-proven process support available.
